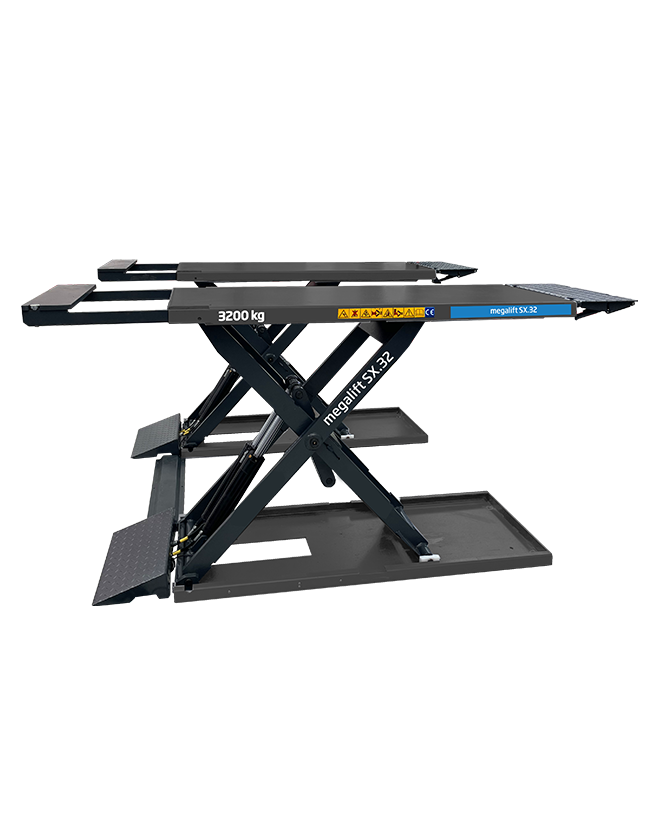

megalift SX.32

Low profile electo-hydraulic scissor lift with nominal capacity up to 3200 kg.

• Volumetric synchronization with double redundant master/slave circuit that guarantees the stability of the load.
• Microswitch which detects any obstacles under the lift, preventing the vehicle overturning.
• Photocell which detects any desynchronization and prevents further misalignments of the platforms.
• Manual flushing system (bleeding) of the master/ slave circuit operated by valves placed in the control unit makes installation and maintenance faster and easier.
• Foot saving function activated by the limit switch lower than ~ 240mm above the ground. During the descent it stops and activates the buzzer to avoid the risk of crushing.
• Compact and ergonomic control unit. Lifting and lowering are carried out by means of the controls on the upper digital panel.

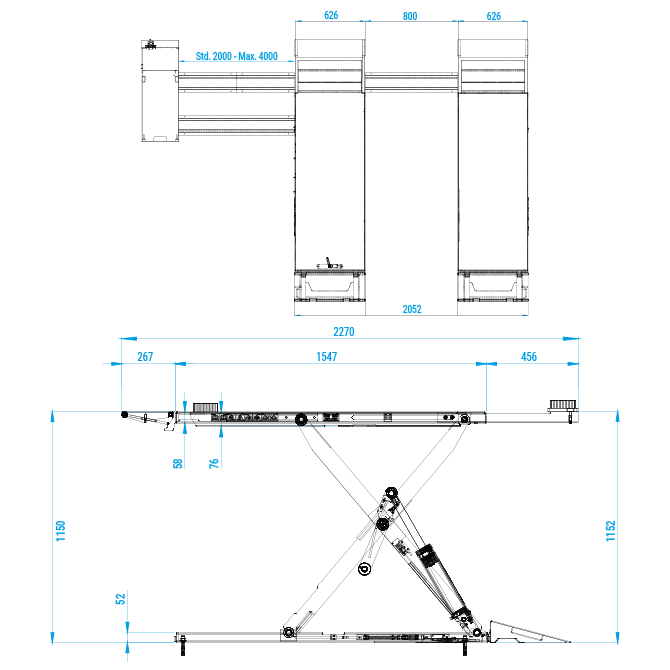

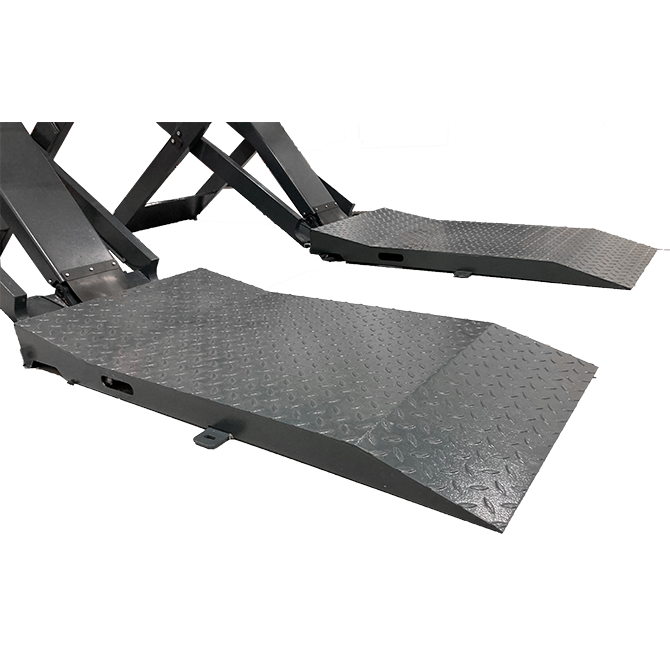

• Telescopic extensions (L=456 mm) to reach pick up points of long wheelbase vehicles. Drive-on/off ramps (L=267 mm).
• Upper limitswitch to prevent damaging hydraulic circuit components.
