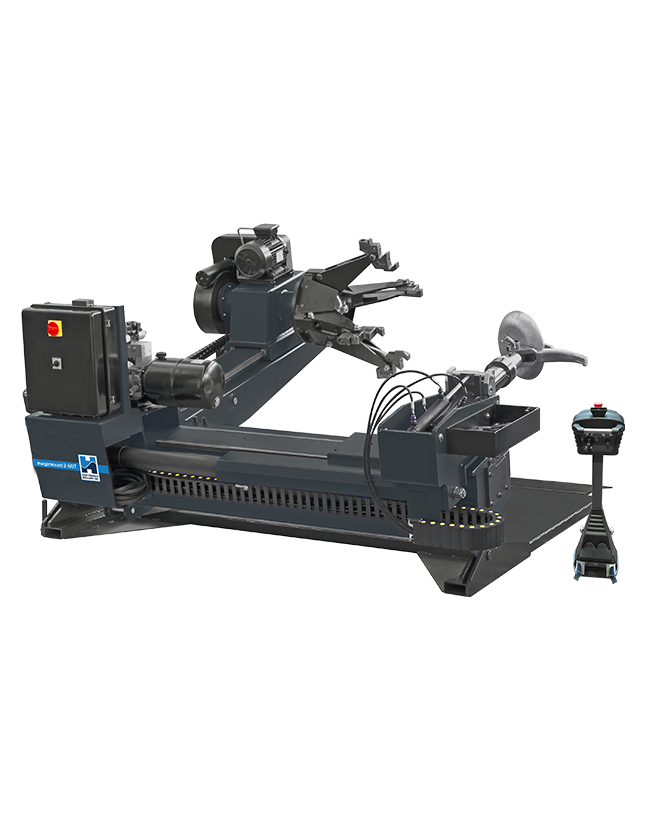

megamount 2-60T2

Super-automatic Tyre Changer for Wheels of Heavy Vehicles up to 60"

The MM2-60T2 is the super-automatic tyre changer with synchronized movement of the carriages. It features a self-centering chuck with four jaws that provide a secure grip on rims and operates through a high-pressure hydraulic circuit (up to 140 bar). The fully automatic tool-holder arm ensures precise positioning, allowing for leverless operation and faster mounting/demounting while protecting the tyre and rim. The portable low-voltage control unit is designed for easy movement within the workspace and includes ergonomically arranged levers, buttons, and pedals to minimize operator errors. It also controls the translational movement of the tool-holder carriage and includes a stand-by function and emergency button for added safety. The spindle operates at two rotation speeds in both directions, ensuring adaptability to different wheel types.

For additional convenience, the Megamount 2-60T2 is available in a version with radio-controlled commands (2-60T2 R), offering even greater flexibility in operation.

Hydraulic self-centering universal chuck with four jaws and 750 mm extension arms, suitable for securely clamping rims from 11” to 46” (up to 60” with optional extensions). Its four jaw grooves provide a firm, precise grip on virtually every rim profile, while integrated Teflon pads on the vertical support help protect the wheel during operation. It accommodates centre holes from 70 mm and offers two operating speeds in both rotational directions. An electromagnetic-brake motor is available as an option.

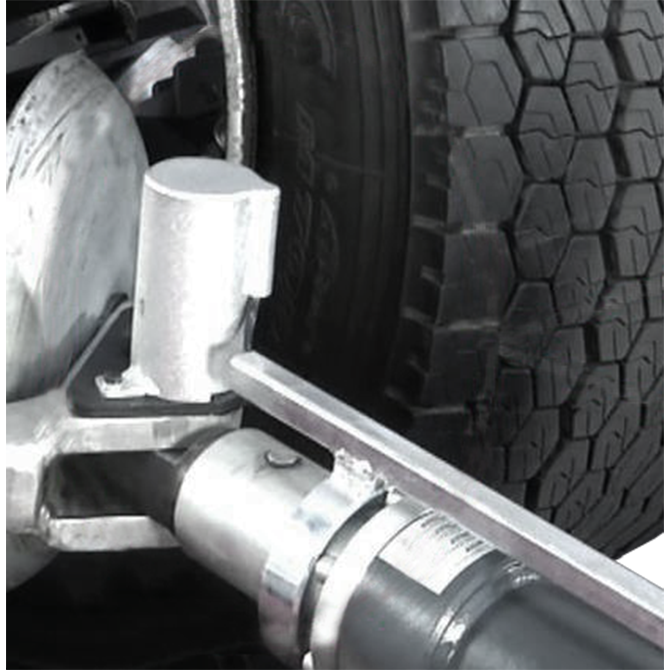

The tool-holder arm elevation and rotation are fully automatic. The quick unlocking system ensures ease and speed during operation change. The innovative tool always in line technology allows the disc and the tool to be always in the right working position, thus ensuring greater ease and speed during M/D operations, more safety for the operator and greater protection of tyre and rim.

The machine is equipped with a low voltage portable control unit, easily movable inside the working area. The rational lay-out of control levers, buttons and pedals prevents the operator from making accidental operational errors. The control unit also controls the translational movement of the tool-holder carriage. Equipped with stand-by function and emergency button as standard.

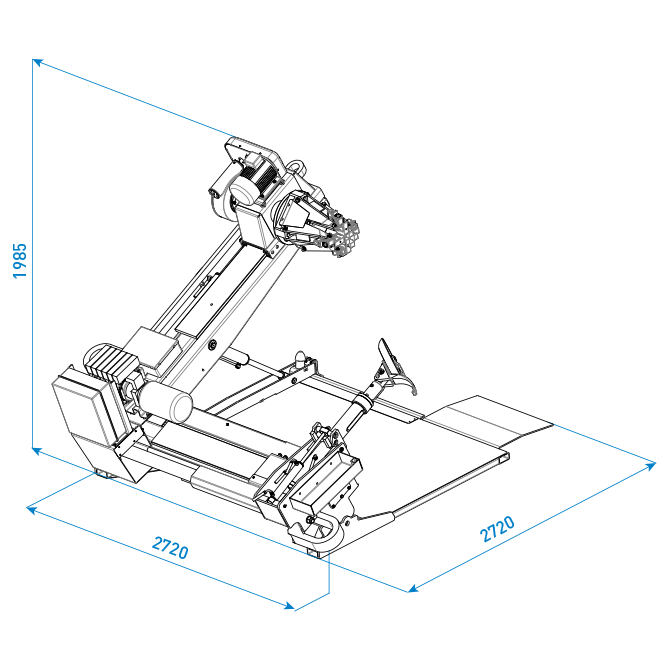

Technical data

Technical Data

Clamping capacity	11” ÷ 46” (11” ÷ 60” ext.)
Max wheel diameter	2700 mm (106”)
Max wheel width	1500 mm (59”)
Max wheel weight	2500 kg
Max bead-breaking power	30.000 N
Speed of rotation	4.5 - 9 rpm
3-Phase motor	2.2 - 3 kW (2 hp)
Power supply	400 V/3/50Hz
Net weight	1550 kg
